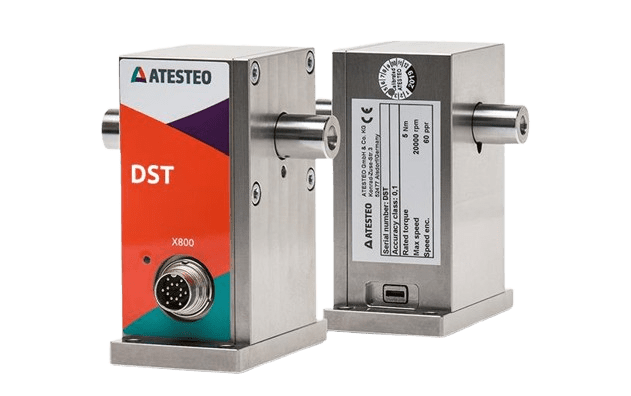

DST Rotary Torque Transducer ATESTEO
- Manufacturer: CENSORED
- Category: Torque torque, SENSORS
The series DST of CENSORED It sets a new standard in compact rotary torque transducers for high-precision applications. Designed to deliver reliable measurements in confined spaces, this sensor stands out for its robustness and versatility in test benches and R&D laboratories.
The measuring system is based on contactless transmission technology, eliminating mechanical wear and ensuring a long, maintenance-free service life. Available in accuracy classes up to 0.05%, The DST is capable of operating at speeds of up to 20,000 rpm, capturing the dynamics of the pair with exceptional fidelity.
Its integrated electronics allow for flexible outputs (voltage, frequency) and feature integrated speed detection (optional), making it an all-in-one solution for mechanical power analysis. Active thermal compensation ensures signal stability even in environments with temperature fluctuations.
Properties
| GENERAL CHARACTERISTICS | |
| Accuracy Class | ≤ ±0.10% / ≤ ±0.05% |
| Nominal Pair (Mdn) | 5, 10, 20 N·m |
| Maximum speed | 20,000 rpm |
| Signal Output | Frequency or Voltage (±10V) |
| Feeding | 12 … 26 V DC |
| SPEED (Optional) | |
| Pulses for Revolution | 60 ppr |
| IP protection | IP42 |
