Torque Sensor F3eS 30000-50000 Nm | 5,500 RPM | Aseptic Optical Transmission

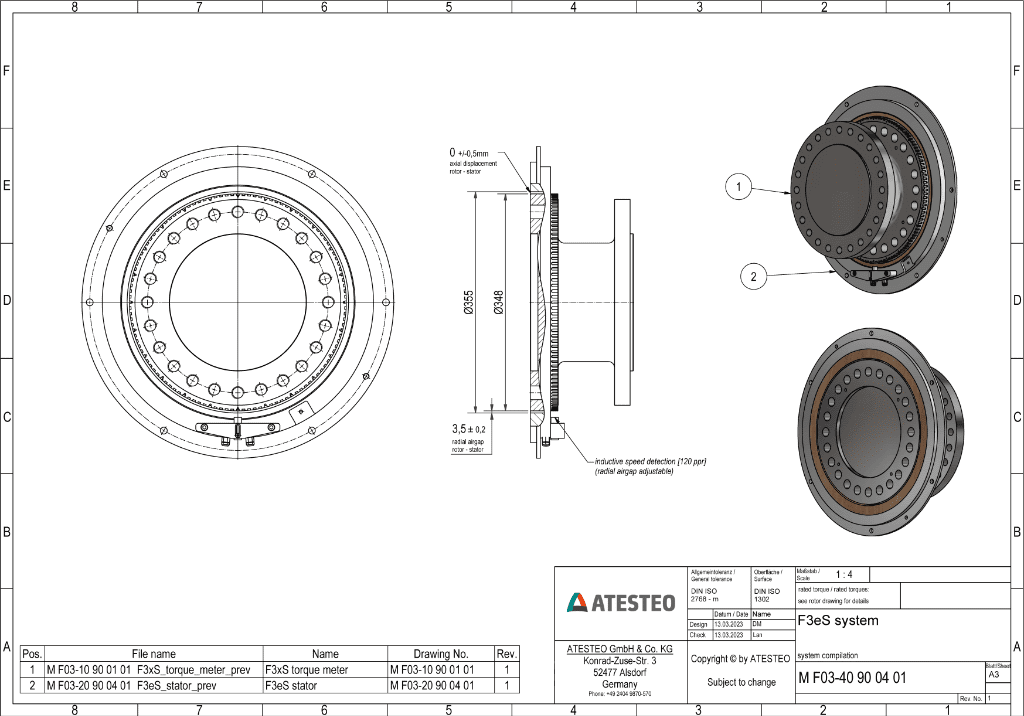

The F3eS series embodies the pinnacle of heavy-duty telemetry by integrating light transmission into heavy-cycle dynamometers. Designed to handle extreme torque transients up to 50,000 Nm, its dynamic body pivots on a standard 290.0 mm PCD flange mounting. This immense transfer base ensures balanced stresses by containing an active inertia of 0.5695 kg·m². This mass parameterization gives the equipment an astonishing torsional rigidity of 36,450 kNm/rad, allowing it to absorb shock peaks from the 500% and neutralize mechanical fatigue failures during sustained rotational tests up to 5,500 RPM.

Unlike inductive approaches, the F3eS variant radically incorporates pure bandwidth Optical Telemetry. This light processing physically isolates the gauge metrology bridge from electromagnetic radiation (EMC) noise, guaranteeing strict EMI immunity to dV/dt converters and traction inverters. The native optical signal maintains an unblemished Class 0.10 rating, delivering clean vectors at positive 80 kHz frequencies through cemented isolation. Build your testbed topology in the Torque Sensor category massive or scale calibration projects from the core in the Guemisa Homepage.
