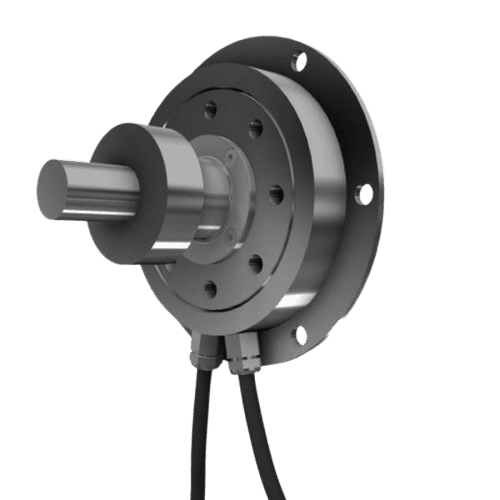

RT1eS-B Torque Transducer: Superior Accuracy Beyond Limits
- Manufacturer: CENSORED
- Category: Torque torque, SENSORS
He RT1eS-B Torque Transducer It represents the cutting edge in torque measurement for high-dynamic rotating shafts. Designed to operate up to 70,000 rpm, This system provides superior technical security in mobility projects with a class accuracy of 0.03%.
RT1eS-B Torque Transducer: Superior Accuracy Beyond Limits
Use the RT1eS-B Torque Transducer It is essential for the development of high-speed electric motors. Using the RT1eS-B torque transducer, motor torque is captured with superior fidelity, ensuring that each test is effective and provides highly reliable data for component validation.
Advantages of the RT1eS-B Torque Transducer
The main advantage of RT1eS-B Torque Transducer Its key feature lies in its inductive digital transmission. This system operates efficiently without contact, ensuring superior protection and complete safety in complex testing environments.
Frequently Asked Questions (FAQ)
Why choose the RT1eS-B Torque Transducer for high speed?
He RT1eS-B Torque Transducer It stands out for its ability to operate at 70,000 rpm with class 0.03%, guaranteeing superior validation in mobility projects.
What outputs does the RT1eS-B Torque Transducer offer?
This transducer provides data security through CAN Bus, voltage and frequency outputs in an efficient manner.
Properties
| Mechanical Specifications | 5, 10, 15, 20 Nm |
| Accuracy Class | ≤ ± 0.03 % |
| Maximum speed | 70,000 rpm (RW) / 50,000 rpm (ETP) |
| Allowable Overload | 200 % from Mdn |
| Breaking load | > 400 % of Mdn |
| Balanced | Class G 2.5 (DIN ISO 1940) |
| Power Supply Voltage | 24 V DC |
| Output Frequency | 60 kHz ± 30 kHz (RS422) |
| Analog Output | ± 10 V |
| Country Bus | CAN Bus 2.0B |
| IP protection | IP54 |
| Operational Status | Static and Dynamic |
