6-Digit Digital Numeric Display for Dimetix Sensors | 100% Flawless

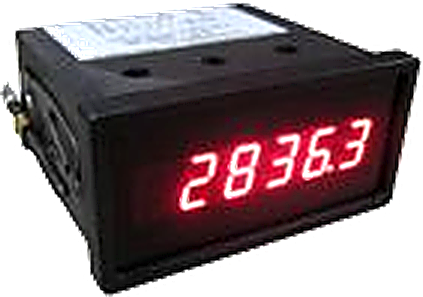

He 6-Digit Numeric Digital Display It represents the gold standard in direct on-site visualization for Dimetix laser telemetry systems. In heavy machining environments, sawmills, or the positioning of high-tonnage steelmaking cranes, it is logistically unsustainable for the plant operator to rely solely on a relayed SCADA monitor housed in a distant control room. This secondary human-machine interface (HMI) bridges this critical gap, providing a giant, bright, real-time alphanumeric display of the exact distance measurement value (typically expressed in absolute millimeters) determined by any calibrated laser sensor from the demanding D-Series family, all at ground level and at the eye level of the machinist or quality control operator.

Designed according to the core principle of industrial "Plug & Play," the commissioning of this illuminated display completely eliminates the parameterization headaches inherent in generic, multi-brand displays. The unit is manufactured and delivered to the integrator already pre-assigned and factory-configured in perfect native synchronization with the string format emitted by the default Dimetix lasers. In practical terms, this means that as soon as the technical team connects the sensor's output terminals to the instrument cluster's data input terminals, the display will seamlessly and automatically recognize the proprietary factory protocol, immediately rendering highly accurate figures without requiring bit mapping or cumbersome middleware.

At the level of electromechanical interconnectivity in the field of work, the luminous monitor is supplied by the dynamic packages coming from the powerful standardized RS-422 asynchronous bus loop. Thanks to the use of this differential physical protocol of shielded twisted pairs, the display can be embedded in rails, structural gantries, or cabinet doors located at enormous distances (up to 1,200 meters) from the original topographic laser scanning the target area. This entire long-range hardware architecture remains free from destructive electromagnetic interference (EMI/RFI) caused by harmonic drops from rolling machinery adjacent to the base electrical installation.

Added to the overwhelming clarity guaranteed by their projectors Solid 6-digit LED Easily readable from awkward angles, the device's power architecture promotes effortless electrical connection. Operating over a wide range of DC voltages (DC 18 to 35 Volts), The display is ideally powered using the same certified power supplies or stabilized electrical panel batteries that power the continuous laser sensors, generic PLCs, and photocells in the production line. It is the essential and definitive visual calibration tool for maximizing factory productivity, protecting both personnel and industrial equipment from undiagnosed bottlenecks or poorly lubricated positioning stops.

Main Features and B2B Corporate Applications:

• Cutting-edge visual architecture supported by high-contrast front panels with 6 hyper-bright LED digits to be read under extreme ambient light conditions.
• Pristine accuracy telemetry projection, visually manifesting a resolution millennium-point in exact millimeters extracted from Dimetix scanners in absolute real time.
• Connectivity and synchronization are fundamentally supported by the robust native differential current protocol. RS-422, suppressing distortions due to extreme cable lengths.
• It dramatically shortens integrator overrun times thanks to its firmware pre-loaded with the strict delivery status Plug & Play (Zero Local Parameterization).
• Thermoelectric adaptability to plant rail supported by efficient consumption supported on the most dominant voltage in global control cabinets: DC from 18 to 35 Volts.
• Indispensable in the mining sector, the control of heavy metallurgical winding and stacker crane packaging where the confrontation of topographical elevations at the foot of the pit is vital without having to look at the engineer's central console.
