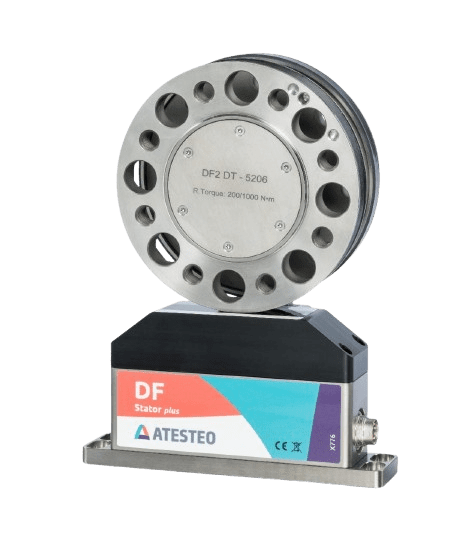

ATESTEO DF5 Plus Torque Measurement System
- Manufacturer: CENSORED
- Category: Torque torque, SENSORS
He DF5 Plus System It is the pinnacle of measurement technology CENSORED, integrating a high-capacity torque transducer with the new control unit Torque Control Unit 5 (TCU5). This system is designed for the most demanding applications in the automotive and aerospace industries.
Total Control with TCU5
The TCU5 unit processes strain gauge signals with unprecedented resolution and speed. It enables the complete digital parameterization of the system, offering real-time diagnostics and multiple communication interfaces (Ethernet, CAN, Analog). This facilitates integration into modern control architectures.

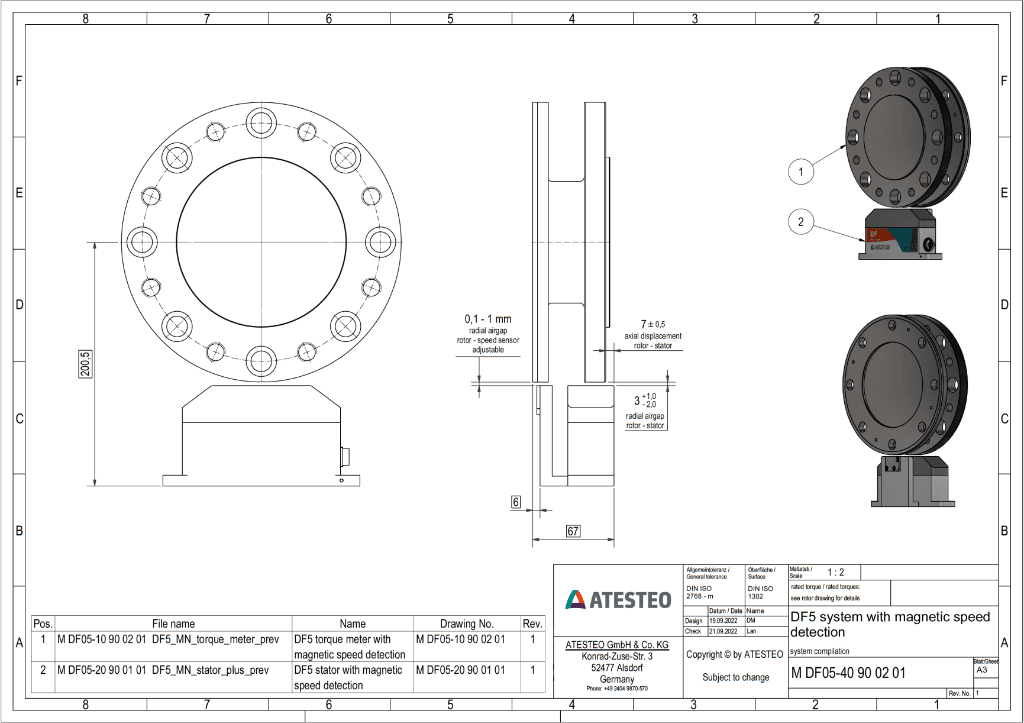

The DF5 rotor, available in special alloys, guarantees mechanical integrity under severe dynamic loads, while the magnetic detection system provides an accurate reading of angular velocity even at high revolutions.
Properties
| Control Unit | TCU5 (Torque Control Unit 5) |
| Total Precision | < 0.04% FS. |
| Data Output | Ethernet (TCP/IP), CAN-Bus |
| Analog Outputs | +/- 10V, 4-20mA (16-bit) |
| Sensor Technology | DMS with digital telemetry |
| Speed Measurement | High Resolution Magnetic Encoder |
| Operating Temperature | -40°C … +120°C (Sensor) |
| Protection | IP65 (Sealed Housing) |
