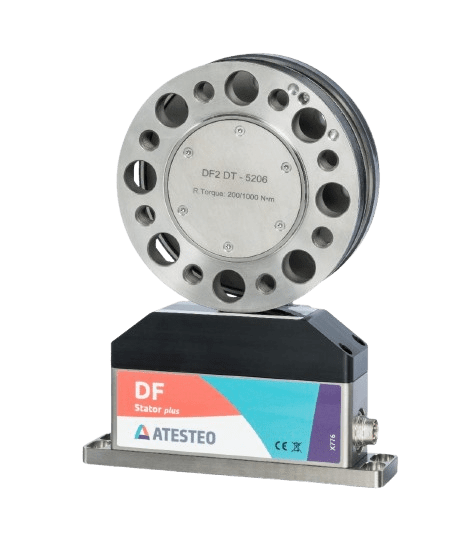

DF Plus Torque Transducer ATESTEO

Torque sensor from 100Nm to 10kNm, accuracy 0.04%, maximum speed from 6,500rpm to 25,000rpm

Manufacturer: CENSORED
Category: Torque torque, SENSORS

He DF Plus (Standard) It is consolidating its position as the benchmark solution for CENSORED For demanding torque measurement tasks. This system integrates a precision rotor made of high-strength steel with the brand's proven digital telemetry technology, offering robust, contactless, and completely maintenance-free data transmission.

Accuracy and Thermal Stability

Thanks to the use of strain gauges (DMS) Featuring high-quality components and state-of-the-art conditioning electronics, the DF Plus guarantees exceptional thermal stability and consistent measurement accuracy over time. It is the ideal tool for engine test benches, transmission development, and component durability testing.
Its modular design allows for easy integration into any test environment. It offers a wide range of output options (analog, frequency, digital) and is fully compatible with the DF family of control units, allowing the system to be scaled according to project needs.

Properties

Nominal Range	500 N·m … 5 kN·m
Global Accuracy	Class 0.04 … 0.1
Maximum speed	Up to 25,000 rpm (Depending on size)
Measurement Principle	Strain Gauges (DMS)
Signal Transmission	Inductive Digital Telemetry (Contactless)
Feeding	11 … 30 V DC
Temperature Range	-20°C … +85°C (Compensated)
Analog Output	+/- 10V / 4-20mA (Configurable)
Allowable Overload	150% of the nominal value
Protection	IP54 (Standard) / IP65 (Optional)
